The Ultimate Cooling Solution for Precise Wine Storage and Beyond

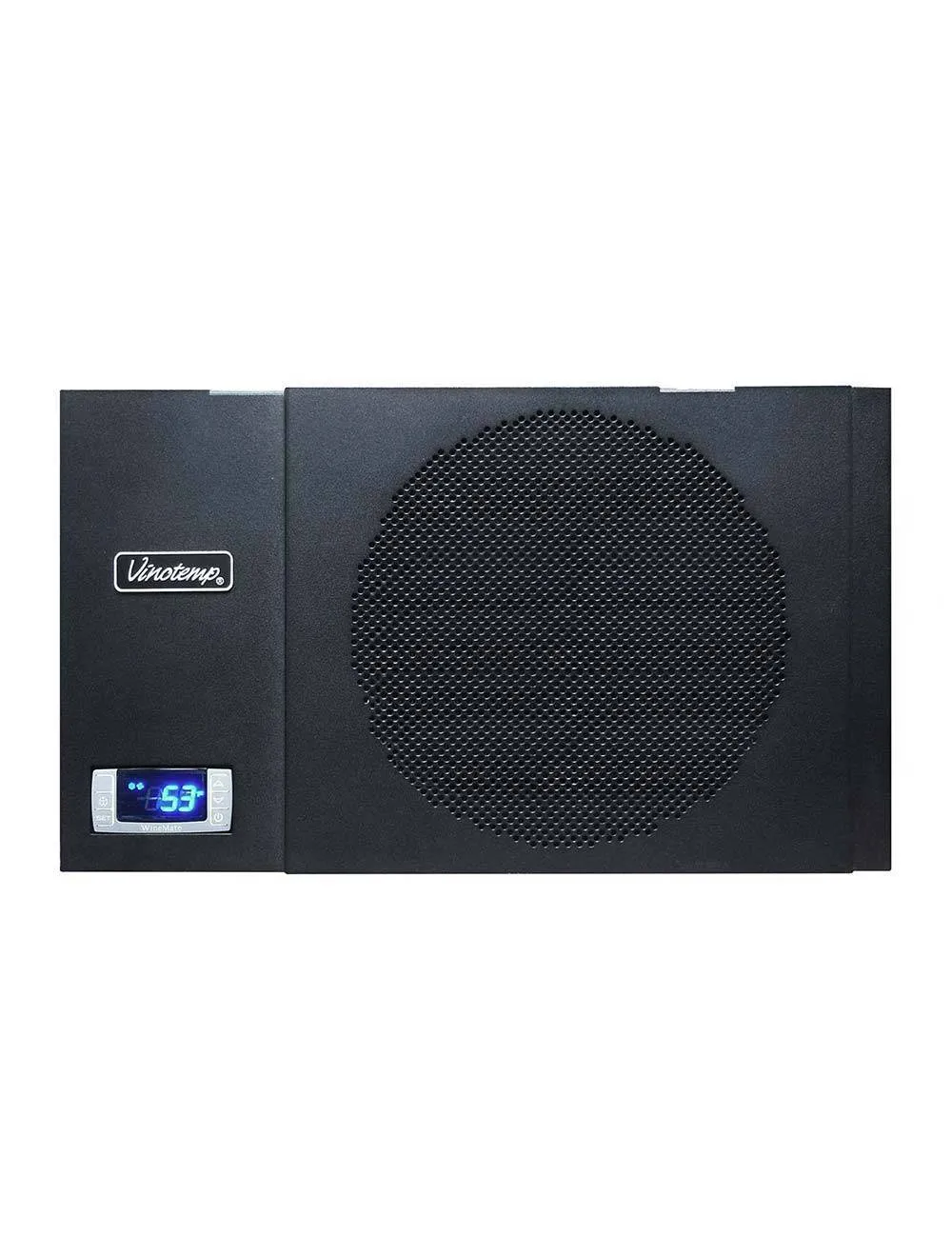

Provide a more stable temperature and humidity controlled environment for your wine with the Wine-Mate 2500CD self-contained cooling system. The Wine-Mate 2500CD has a cooling capacity of 200 cubic feet. With bottom cold air discharge and multiple top and rear hot air exhaust, this durable unit is equipped with an LED digital display which includes an alarm feature that will alert you to cooling issues, and easy power on/of switch, and reliable digital electronic thermostat. Wine-Mate Cooling Systems are long-lasting, reliable cooling units assembled to the highest quality standards. No refrigeration specialists are needed--it ships to you fully-charged and ready to use.
Wine-Mate cooling systems are also perfect for storing fine fur, cigars, leather goods, chocolate and salami! For an additional cost, Wine-Mate systems can be customized for your exact storage needs - please call for more information!
Features
-
SELF-CONTAINED: This unit is a self-contained, all-in-one, and ready for use. No copper tubing or drain line are required.
-
EXHAUST: Rear (standard) or top
-
VENTING: When installed into a wine cabinet, this unit must vent outside the wine cabinet.
-
TEMPERATURE: The WM-1500-HTD cooling unit is designed and used to provide a stable temperature between 50~65 °F for a properly insulated and sized space.
-
AMBIENT TEMPERATURE RANGE: The ambient temperature range for WM-1500-HTD should not be higher than 78°F or lower than 50°F in order to operate properly.
-
If the exhaust ambient temperature exceeds 78°F, one size larger unit must be used.
-
HUMIDITY CONTROL: The refrigerated space will maintain humidity within the range of 50~75% RH. We use an innovative method to provide additional humidity.
-
WM-1500-HTD cooling unit can only adjust fan run time for humidity, not speed. Adjust evaporator fan running time through the control program to adjust humidity.
-
REFRIGERANT: Uses R134a refrigerant which is considered environmentally friendly
-

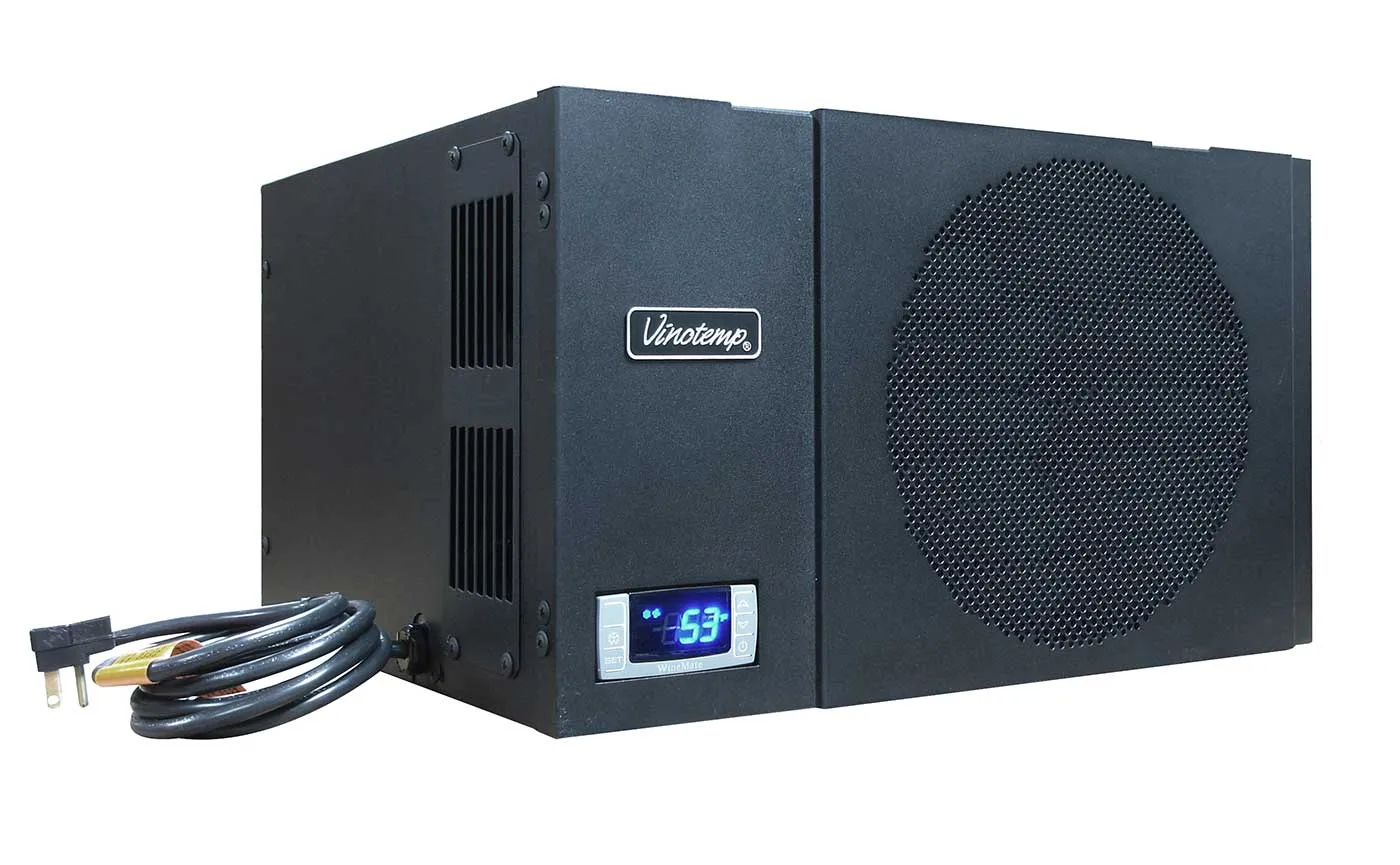

DISPLAY: Digital display with easy push-button controls
-
NOTIFICATIONS: Display notifications provide alerts help to protect your wine cellar and alert you when maintenance is required.
-

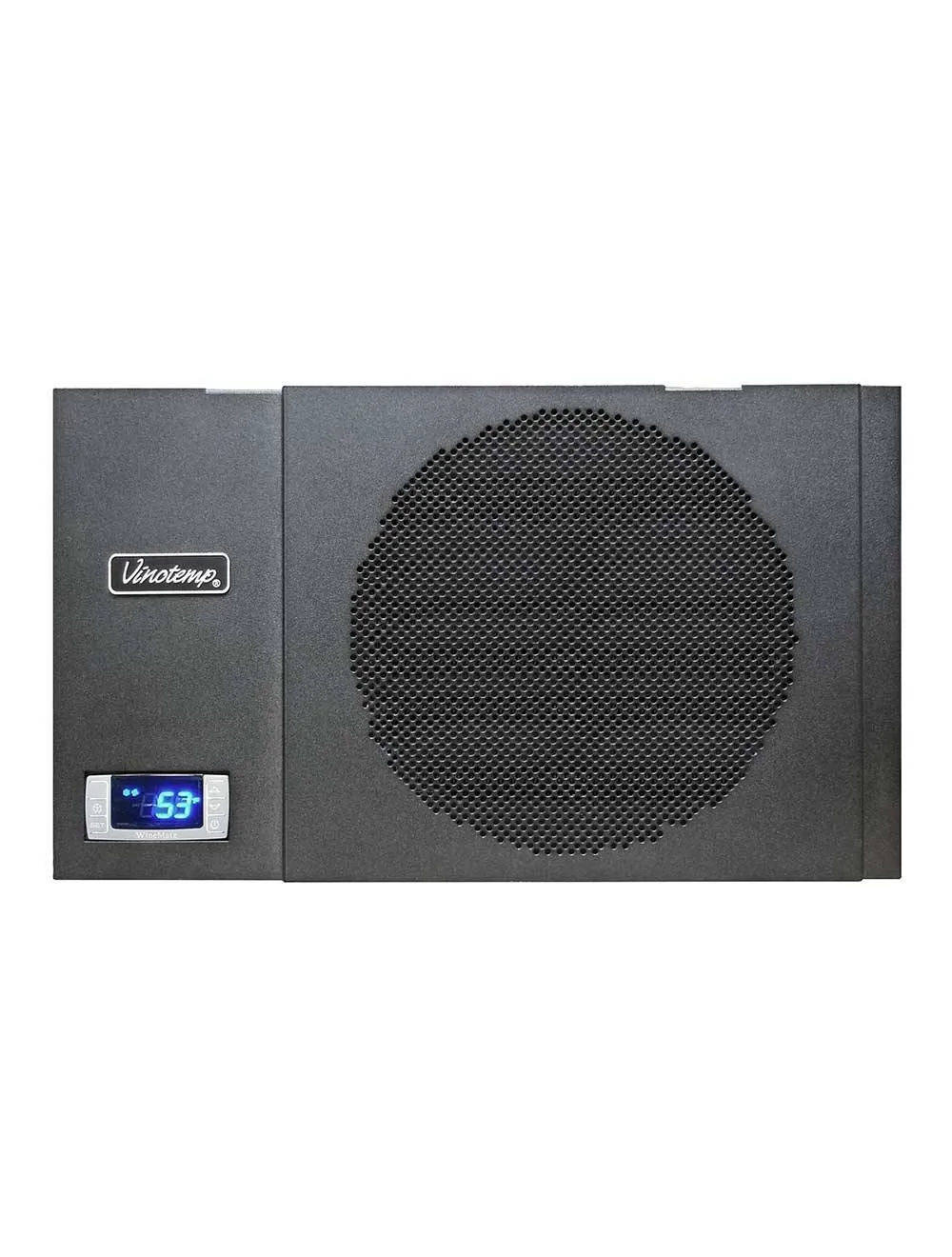

CONTROL PANEL: Control panel includes digital display, manual defrost button, up and down arrows to adjust temperature as well as browse parameters, power button, and SET button.
-

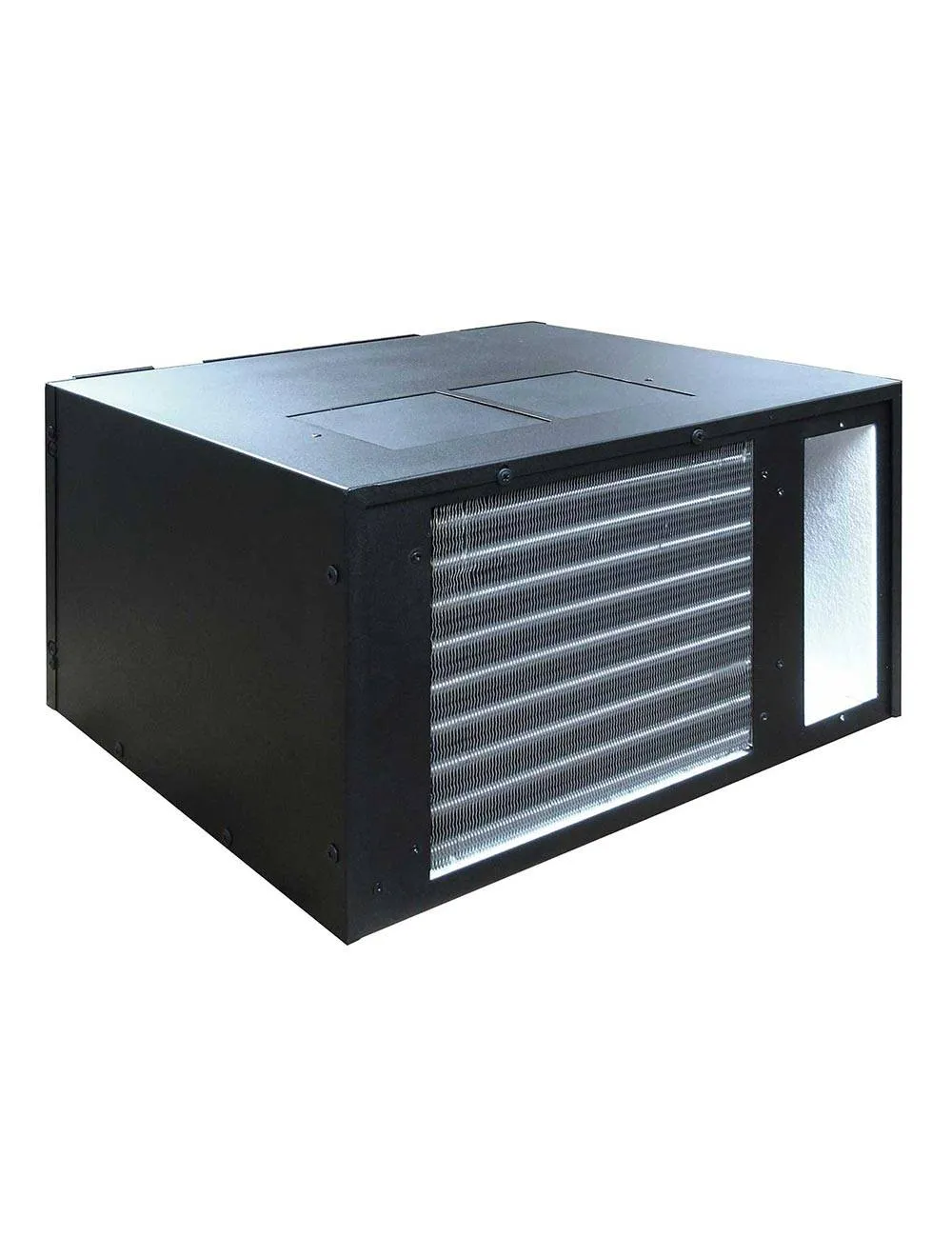

HTD evaporators have a water-repellent self-cleaning and anti-microbial coat that helps your equipment stay efficient and actively kills harmful bio-film growth.
-

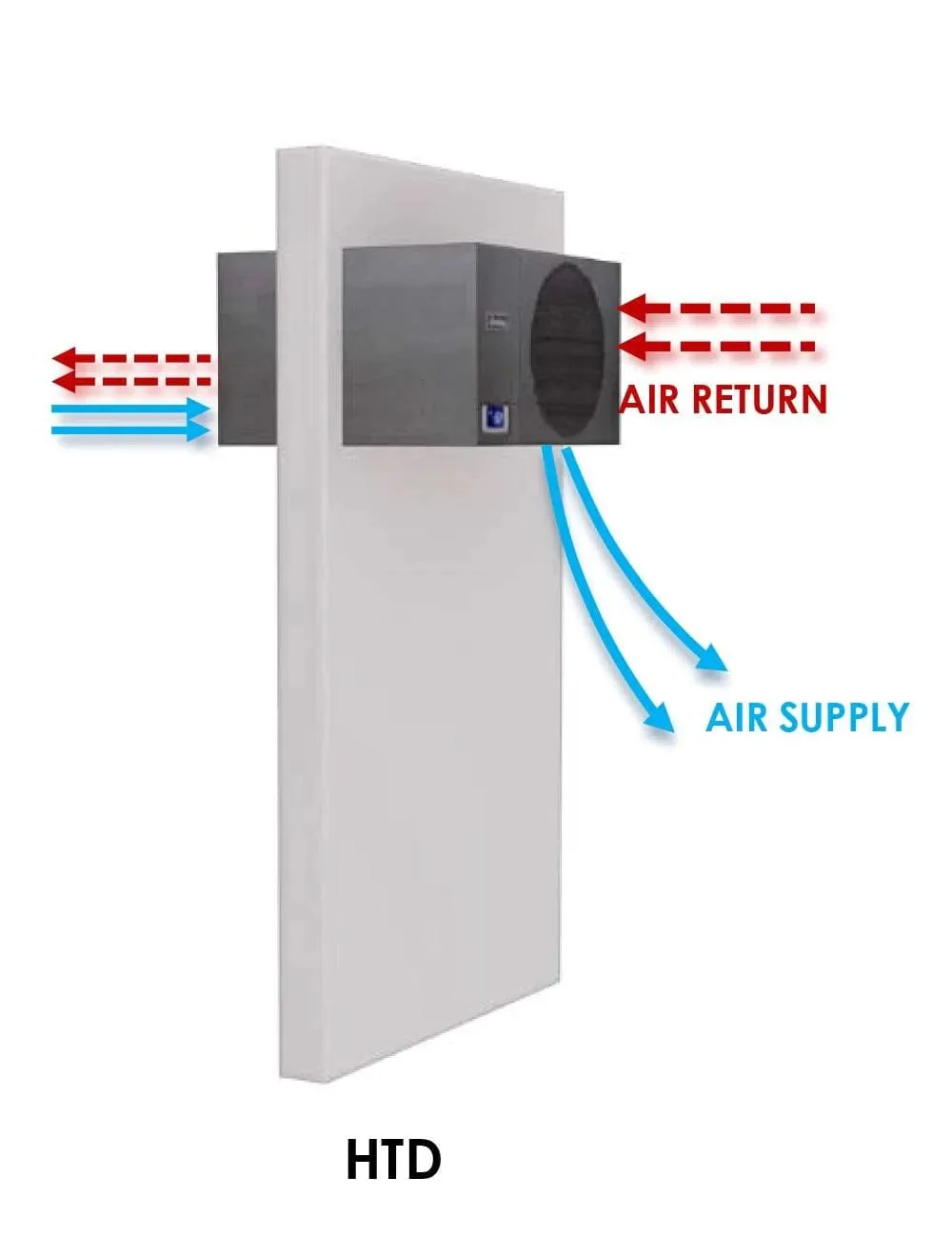

Exchangeable supply grille can be used for front, back, and down cold air distribution.
-
Extra insulations are used for both thermal and noise isolation.
-
Condensate tray is used for humidity adjustment.
-
The lower the BTU of the unit, the lower the decibel or the quieter it is. It is important to know the balance of noise vs the power needed to keep the wine at the perfect temperature.
-
Our 1500-HTD is actually a 1700 BTU unit. This unit has a decibel of 41 DB at 9FT, its both the strongest and quietest on the market in its class.
- WARRANTY: Self-contained units 1 year warranty on parts, 1 year labor.
- CERTIFICATIONS: UL Approved
-
DIMENSIONS: 18” W x 16 1/2” D x 10 1/2” H
-
COVERAGE SIZE: 90 Cubic Feet
-
ELECTRICAL REQUIREMENTS: 115V 60Hz 4A
-
WEIGHT: 55 lbs
-
NOISE: 49 dBA for cooling unit, 46 dBA for cabinet
-
CFM: 120
-
BTU/h: 1500
NOTE: Wine-Mate self-contained units must be operated in an upright position at all times. They should not be placed on their side or flipped upside down.
